TEYU water chiller CW-6260 is a particularly reliable and efficient industrial process cooler that is intended for indoor use. It can be used flexibly for cooling demands from industrial, analytical, medical to laboratory applications. This highly reliable and cost effective industrial chiller highlights a large cooling capacity of 9000W and temperature control accuracy of ±0.5°C, along with compliance to CE, RoHS and REACH standards.
The side casings of industrial process chiller CW-6260 are easy to be taken away for regular maintenance. An intelligent temperature controller is installed to provide automatic temperature control. This can keep the difference between water temperature and room temperature as small as possible, reducing the risk of water condensation. Built-in multiple alarm devices to further protect the chiller and laser equipment. 4 caster wheels mounted at the bottom ensure easy positioning.
Model: CW-6260
Machine Size: 77X55X103cm (L X W X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
| Model | CW-6260ANTY | CW-6260BNTY |
| Voltage | AC 1P 220-240V | AC 1P 220-240V |
| Frequency | 50Hz | 60Hz |
| Current | 3.4~21.6A | 3.9~21.1A |
Max. power consumption | 3.56kW | 3.84kW |
| 2.76kW | 2.72kW |
| 3.76HP | 3.64HP | |
| 30708Btu/h | |
| 9kW | ||
| 7738Kcal/h | ||
| Refrigerant | R-410a | |
| Pump power | 0.55kW | 0.75kW |
Max. pump pressure | 4.4bar | 5.3bar |
Max. pump flow | 75L/min | |
| Precision | ±0.5℃ | |
| Reducer | Capillary | |
| Tank capacity | 22L | |
| Inlet and outlet | Rp1/2" | |
| N.W | 81Kg | |
| G.W | 98Kg | |
| Dimension | 77X55X103cm (L X W X H) | |
| Package dimension | 78X65X117cm (L X W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Cooling Capacity: 9kW
* Active cooling
* Temperature stability: ±0.5℃
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* Intelligent temperature controller
* Multiple alarm functions
* Ready for immediate use
* Easy maintenance and mobility
* Visual water level
Heater
Filter
US standard plug / EN standard plug
Intelligent temperature controller
The temperature controller offers high precision temperature control of ±0.5°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

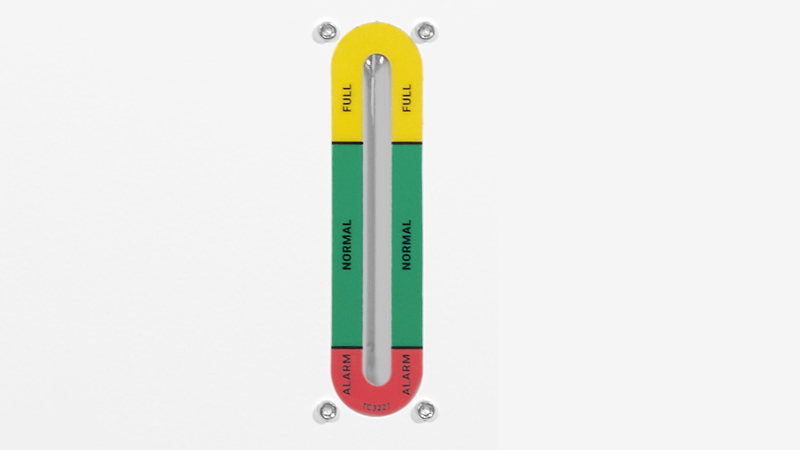

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
