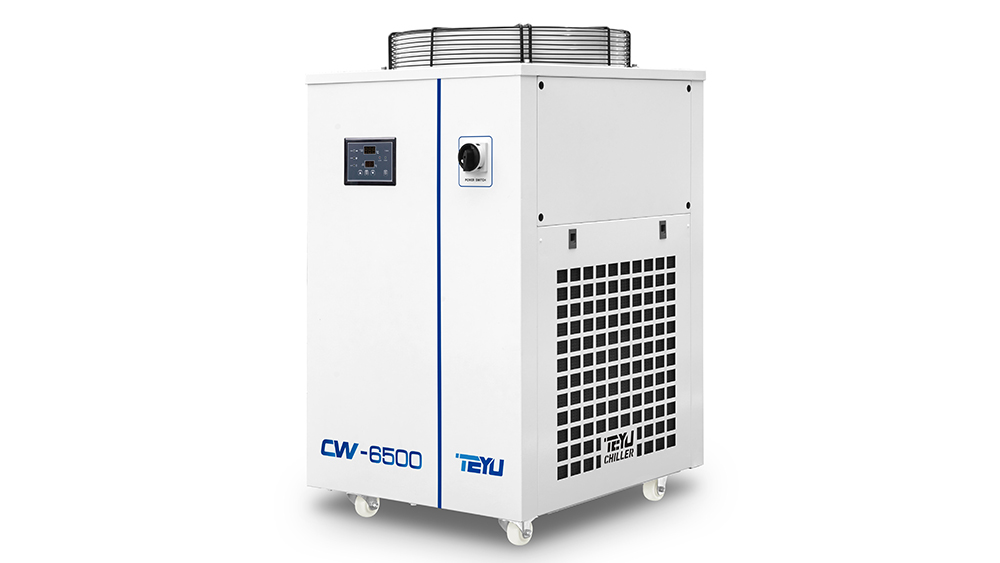

TEYU industrial water chiller CW-6500 can provide assured active cooling in a wide range of cutting, printing, marking, engraving, welding, mold cleaning, toy manufacturing and clothing, etc. It features low operating costs, maintenance-friendly design and simple operation. Cooling capacity can be up to 15kW with stability of ±1℃. A powerful compressor is installed to guarantee stable working conditions and maximize refrigeration performance for continuous operation.
Industrial chiller CW-6500 supports Modbus-485 function so that communication with the device to be cooled can be achieved. Thanks to its closed-loop design, this recirculating chiller is less likely to be affected by environmental contamination problems and at the same time decreases consumed energy and improves efficiency. Optional power frequency of 50Hz/60Hz and voltage of 380V.
Model: CW-6500
Machine Size: 83X65X117cm (LX W X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
| Model | CW-6500ENTY | CW-6500FNTY |
| Voltage | AC 3P 380V | AC 3P 380V |
| Frequency | 50Hz | 60Hz |
| Current | 2.1~17.3A | 2.1~16.5A |
Max. power consumption | 8.1kW | 8.25kW |
| 4.6kW | 5.12kW |
| 6.16HP | 6.86HP | |
| 51880Btu/h | |
| 15kW | ||
| 12897Kcal/h | ||
| Pump power | 1.1kW | 1kW |
Max. pump pressure | 6.15bar | 5.9bar |
Max. pump flow | 117L/min | 130L/min |
| Refrigerant | R-410a | |
| Precision | ±1℃ | |
| Reducer | Capillary | |
| Tank capacity | 40L | |
| Inlet and outlet | Rp1" | |
| N.W | 124Kg | |
| G.W | 146Kg | |
| Dimension | 83X65X117cm (LX W X H) | |
| Package dimension | 95X77X135cm (LX W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Cooling Capacity: 15000W
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* Intelligent temperature controller
* Multiple alarm functions
* Ready for immediate use
* Easy maintenance and mobility
* RS-485 Modbus communication function
* Available in 380V
Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.
Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
