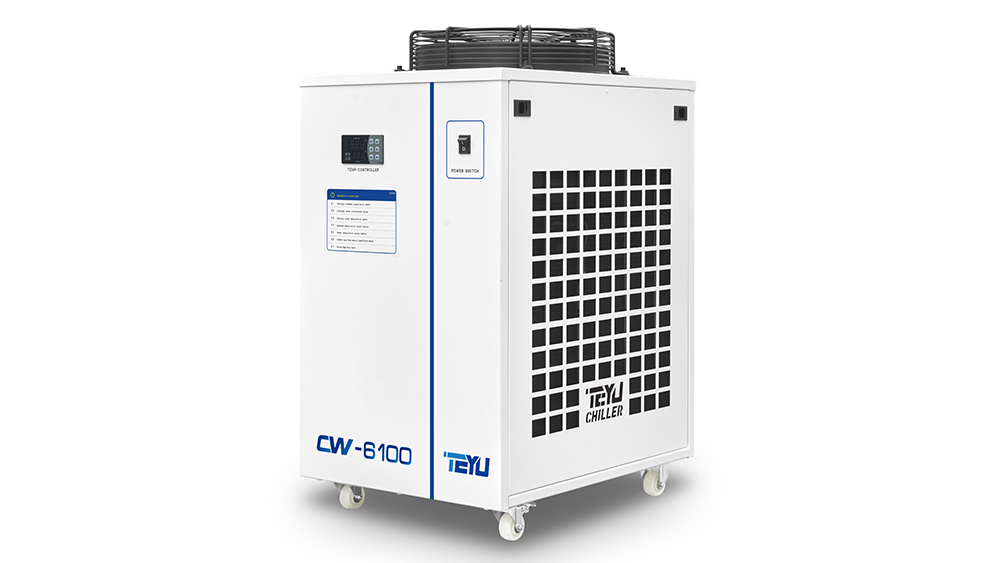

TEYU industrial chiller CW-6100 can respond perfectly to the cooling need of diverse applications like machine tools, lasers, printing machines, plastic molding machines, analytical equipment, etc.. It offers a cooling capacity of 4000W while the stability of ±0.5℃. From the high performance evaporator to the durable water pump, CW-6100 closed loop water chiller system is constructed in high quality standards, making industrial equipment at a suitable temperature to ensure continuous and efficient machining.
Industrial chiller CW-6100 features standard safety mechanisms including high/low temperature alarm, water flow alarm, compressor overcurrent protection etc.. The disassembly of side dust-proof filter for the periodic cleaning operations is easy with fastening system interlocking. Four caster wheels offer easy mobility and unmatched flexibility. Complies with CE, RoHS and REACH standards.
Model: CW-6100
Machine Size: 67X47X89cm (L X W X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
| Model | CW-6100AITY | CW-6100BITY | CW-6100ANTY | CW-6100BNTY |
| Voltage | AC 1P 220-240V | AC 1P 220-240V | AC 1P 220-240V | AC 1P 220-240V |
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Current | 0.4~6.2A | 0.4~7.1A | 2.3~8.1A | 2.1~8.8A |
Max. power consumption | 1.34kW | 1.56kW | 1.62kW | 1.84kW |
| 1.12kW | 1.29kW | 1.12kW | 1.29kW |
| 1.5HP | 1.73HP | 1.5HP | 1.73HP | |
| 13648Btu/h | |||
| 4kW | ||||
| 3439Kcal/h | ||||
| Pump power | 0.09kW | 0.37kW | ||
Max. pump pressure | 2.5bar | 2.7bar | ||
Max. pump flow | 15L/min | 75L/min | ||
| Refrigerant | R-410a | |||
| Precision | ±0.5℃ | |||
| Reducer | Capillary | |||
| Tank capacity | 22L | |||
| Inlet and outlet | Rp1/2" | |||
| N.W. | 53Kg | 55Kg | ||
| G.W. | 64Kg | 66Kg | ||
| Dimension | 67X47X89cm (L X W X H) | |||
| Package dimension | 73X57X105cm (L X W X H) | |||
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Cooling Capacity: 4000W
* Active cooling
* Temperature stability: ±0.5°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* User-friendly temperature controller
* Integrated alarm functions
* Back mounted water fill port and easy-to-read water level check
* High reliability, energy efficiency and durability
* Simple setup and operation
Heater
Filter
US standard plug / EN standard plug
Intelligent temperature controller
The temperature controller offers high precision temperature control of ±0.5°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.
Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
