water chiller for Phoseon LED UV Curing Systems

S&A Teyu CW-5200 is refrigeration type air cooled water chiller of 1400W cooling capacity, it is able to cool UV LED source of UV curing system.

SEND INQUIRY NOW

Item NO.:
CW-5200
Product Origin:
Guangzhou,China
Shipping Port:
Guangzhou,China
Cooling capacity:
1400W
Precision:
±0.3°C
Voltage:
110/220V
Frequency:
50/60Hz
Refrigerant:
R-407c/R-410a
Reducer:
capillary
Pump power:
0.05KW/0.1KW
Max.pump lift:
12M/25M
Max.pump flow:
13L/min, 16L/min
N.W:
26Kgs
G.W:
29Kgs
Dimension:
58*29*47(L*W*H)
Package dimension:
70*43*58(L*W*H)

SEND INQUIRY NOW

Product Description

water chiller

CW-5200 water chiller is developed and produced by S&A Teyu company, it is applied to cool Phoseon LED UV Curing systems.

S&A Teyu industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.

S&A Teyu water chiller covers 50% of market share of the CO2 laser refrigeration industry with annual sales amount of 30,000 units. After 16-year development, S&A Teyu has become a well-known and popular brand in laser cooling industry.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

Features

1. 1400W cooling capacity; use environmental refrigerant;

2. Compact size, long working life and simple operation;

3. ±0.3°C precise temperature control;

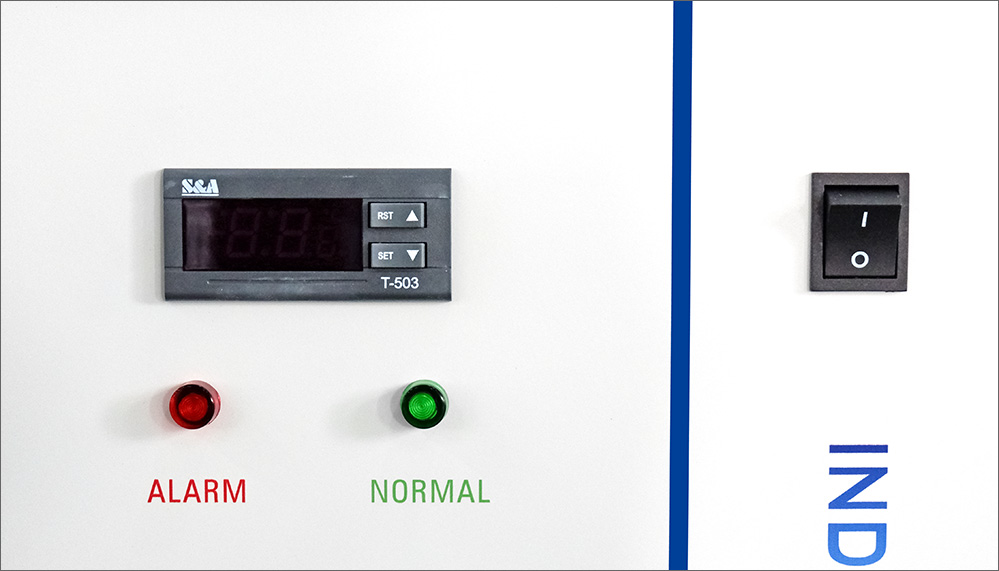

4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;

7. Optional heater and water filter.

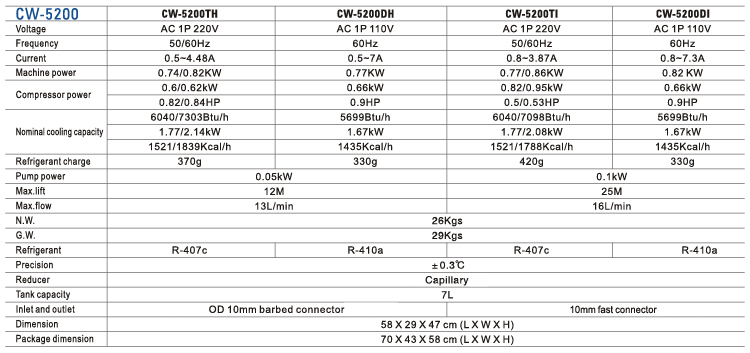

Specification

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

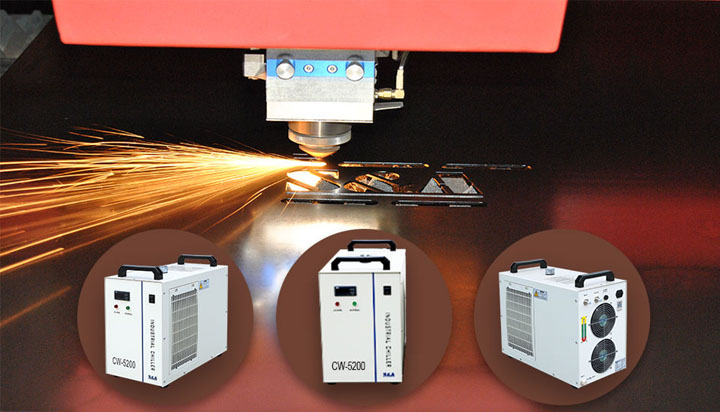

CW-5200: applied to cool CO2 laser tube;
CW-5200: applied to cool CNC spindle, welding equipment.
CW-5200 : applied to a cool laser diode, solid-state laser or RF laser tube;
Optional: CW-5202 dual water inlet and outlet series; heat booster; water filter.

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

Independent production of sheet metal,evaporator and condenser

High precision temperature control system

Adopt IPG fiber laser for welding and cutting sheet metal. Temperature control accuracy can reach ±0.3°C.

Ease of moving and water filling

The firm handle can help move the water chillers easily.

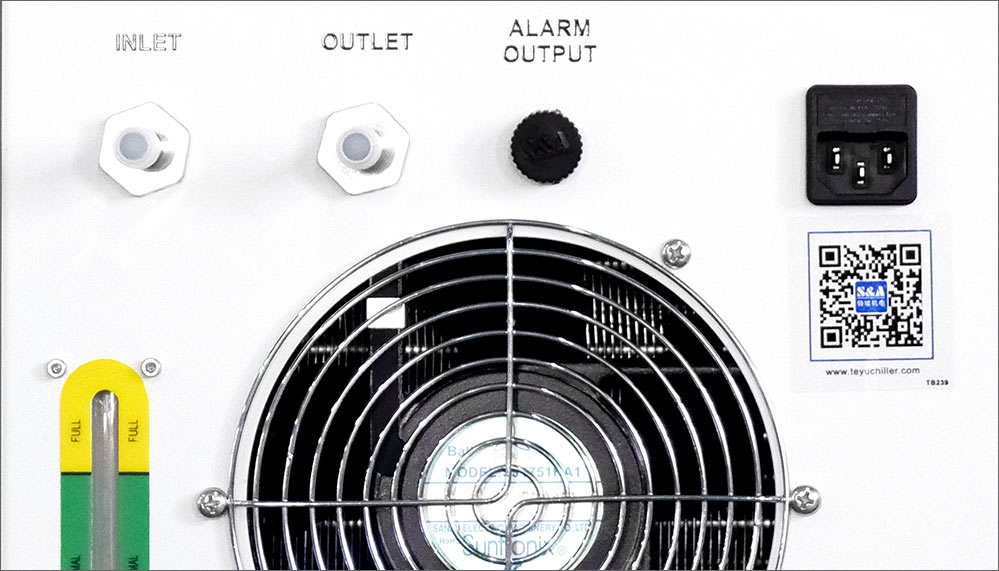

water supply inlet

Inlet and outlet connector equipped

Multiple alarm protection.

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

Cooling fan of famous brand installed.

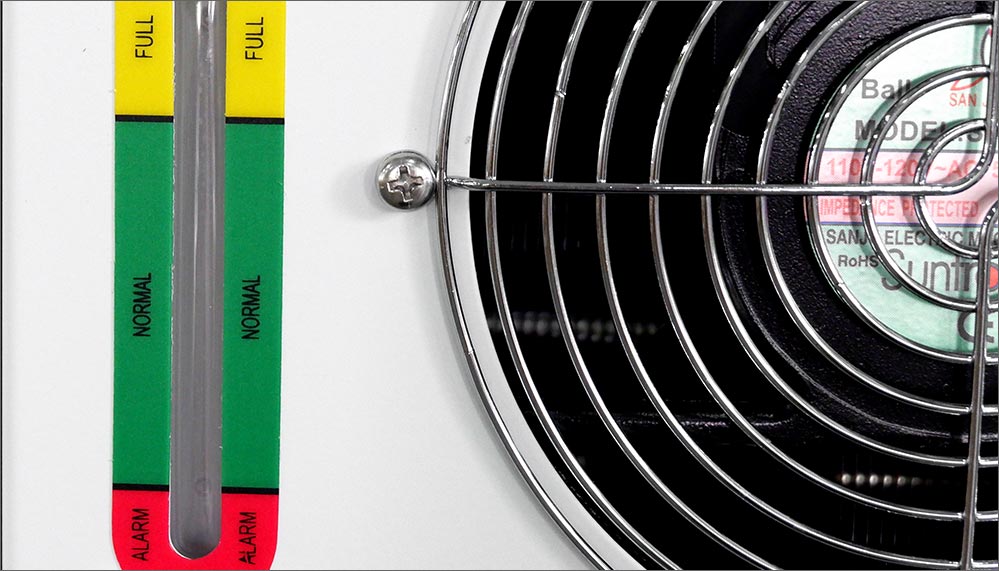

Level gauge equipped.

Cooling fan with high quality and low failure rate.

Alarm description

CW-5200 water chiller is designed with built-in alarm functions.

E1 - over high room temperature

E2 - over high water temperature

E3 - over low water temperature

E4 - room temperature sensor failure

E5 - water temperature sensor failure

Identify Teyu(S&A Teyu) authentic chiller

All of S&A Teyu water chillers are certified with design patent. Counterfeiting is not allowed.

Please recognize S&A Teyu logo when you purchase S&A Teyu water chillers.

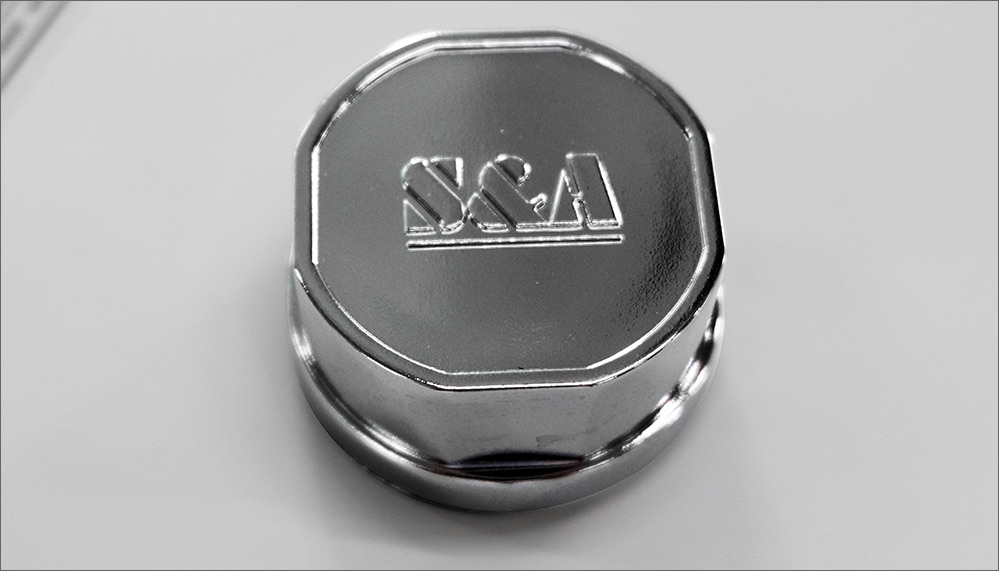

Components carry “S&A Teyu” brand logo. It is an important identification distinguishing from counterfeit machine.

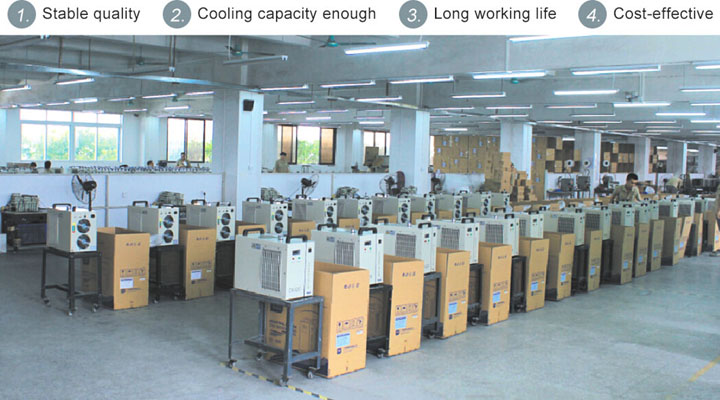

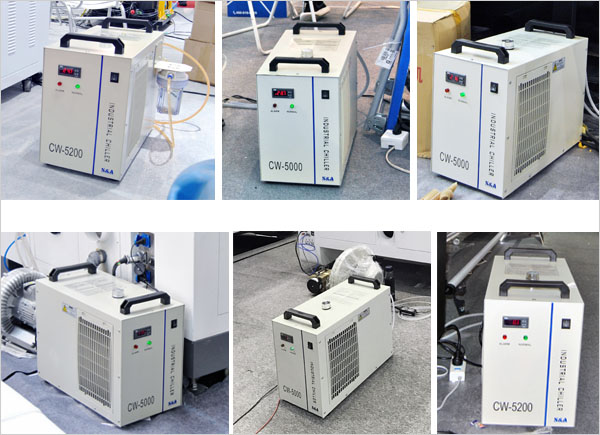

More than 3,000 manufacturers choosing Teyu (S&A Teyu)

The reasons of quality guarantee of Teyu (S&A Teyu) chiller

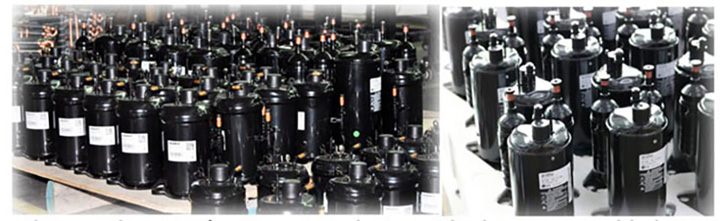

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

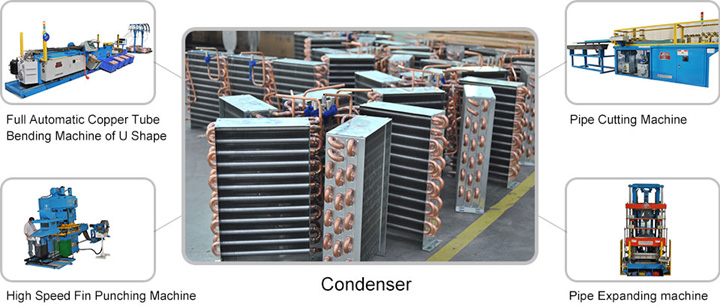

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A Teyu
