UV Industrial Water Chiller for Large Format Flatbed / Roll to Roll UV LED Printer

UV industrial water chiller CW-6300 is famous for its digital intelligent temperature controller and is widely used to cool large format flatbed/ Roll to Roll UV LED printer.

SEND INQUIRY NOW

Item NO.:
CW-6300
Product Origin:
Guangzhou,China
Shipping Port:
Guangzhou,China
Cooling capacity:
8500W
Precision:
±1℃
Voltage:
220/380V
Frequency:
50/60Hz
Refrigerant:
R-410a
Reducer:
capillary
Pump power:
0.55KW/0.75KW
Tank capacity:
45L
Inlet and outlet:
Rp1
Max.pump lift:
45M/53M
Max.pump flow:
70/min
N.W:
135Kgs
G.W:
152Kgs
Dimension:
83*65*117(L*W*H)
Package dimension:
95*84*136(L*W*H)

SEND INQUIRY NOW

Product Description

UV LASER CHILLER

UV industrial water chiller CW-6300 is famous for its digital intelligent temperature controller and is widely used to cool large format flatbed/ Roll to Roll UV LED printer .

S&A Teyu industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.

Industrial air cooled water chiller features
1. 8500W cooling capacity; optional environmental refrigerant;
2. ±1℃ precisely temperature control;
3. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval; RoHS approval; REACH approval;

6. Optional heater and water filter;

7.Support Modbus-485 communication protocol, which can realize the commnucation between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

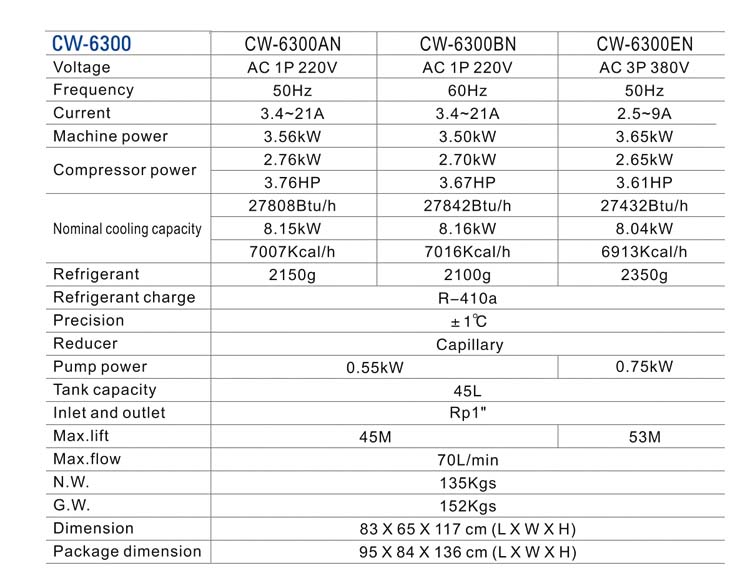

Air cooled water chiller machines specification

CW-6300: Applied to cool YAG laser or co2 metal RF tube or semiconductor laser;
CW-6302: Dual inlet and outlet series (option); heating device (option); filter(option)

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

Independent production of sheet metal, evaporator and condenser

Multiple alarm protection.

Adopt IPG fiber laser for welding and cutting sheet metal. The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

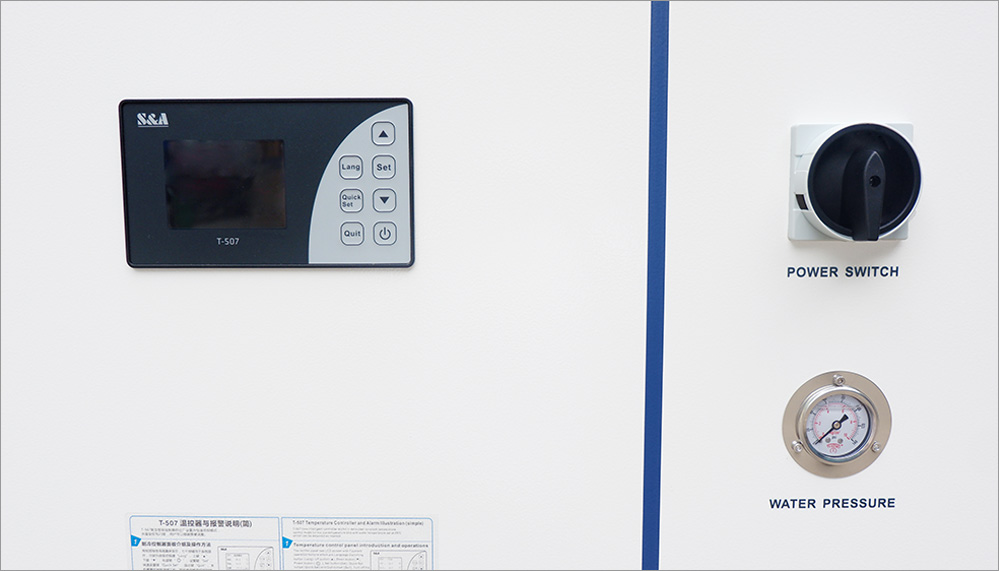

temperature controller

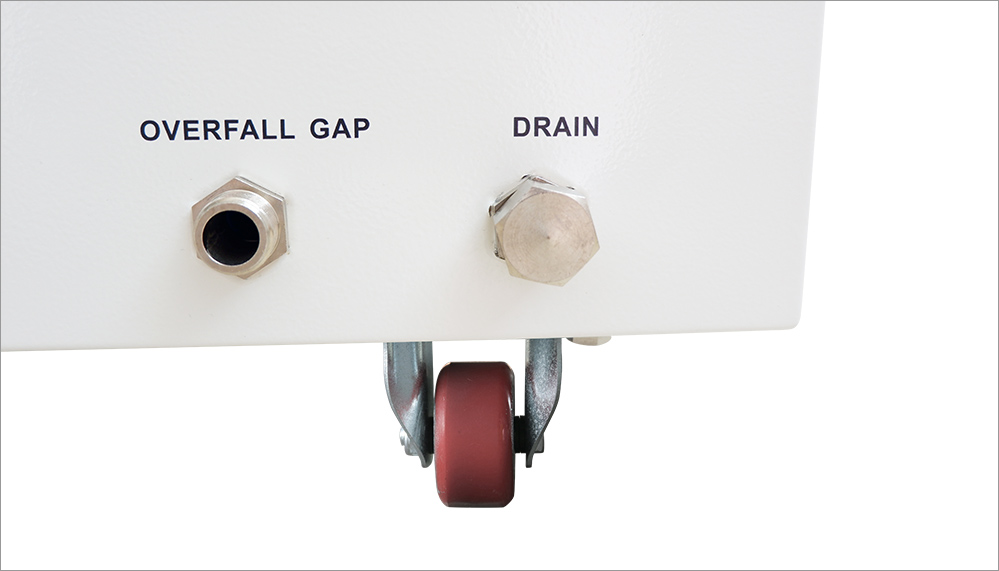

Equipped with water pressure gauges ,drain outlet with valve and universal wheels.

Water pressure gauges help monitor the discharge pressure of water pump while univeral wheels facilitate the moving of the chiller.

water pressure gauge & drain outlet

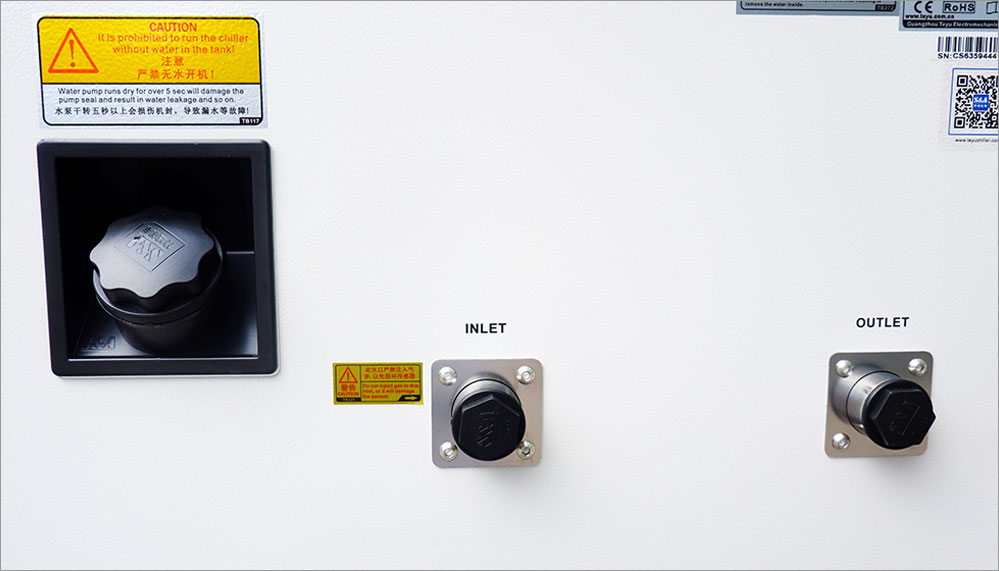

Inlet and outlet connector equipped.

Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

inlet & outlet

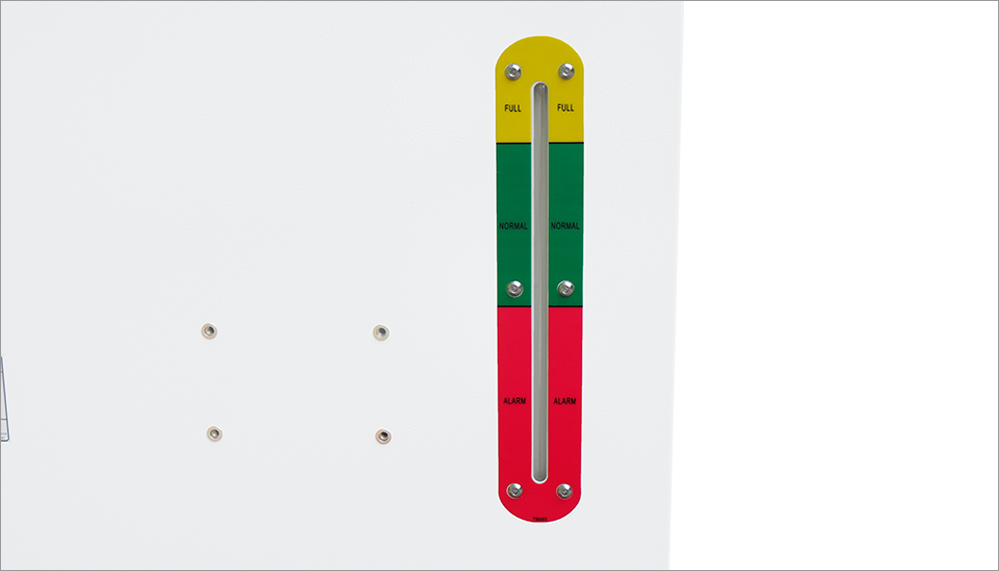

Level gauge equipped.

water level gauge

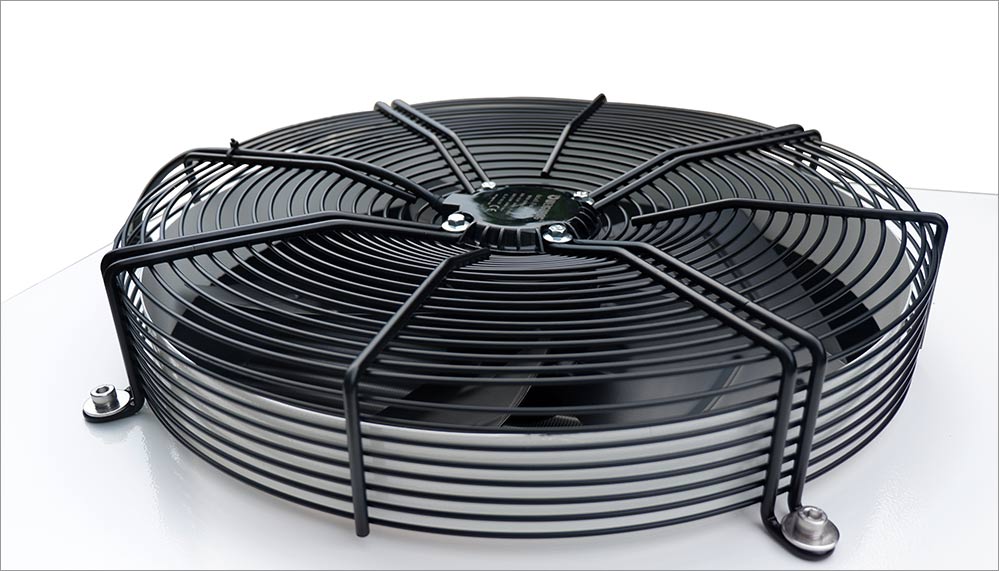

Cooling fan of famous brand installed.

With high quality and low failure rate.

Customized dust gauze available and easy to take apart.

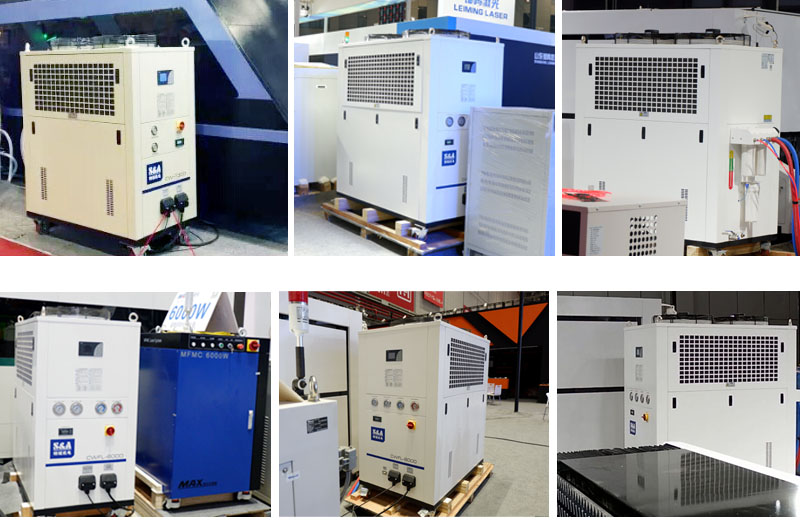

CHILLER APPLICATION

water chillers application

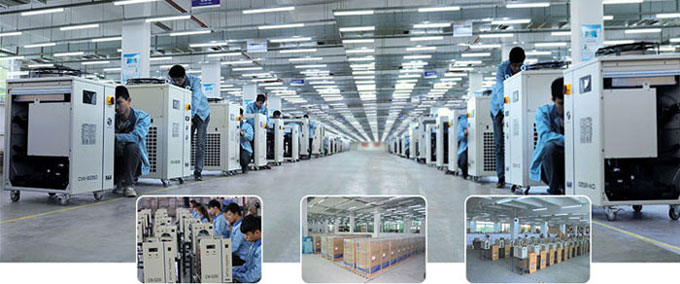

WAREHOUSE

18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop

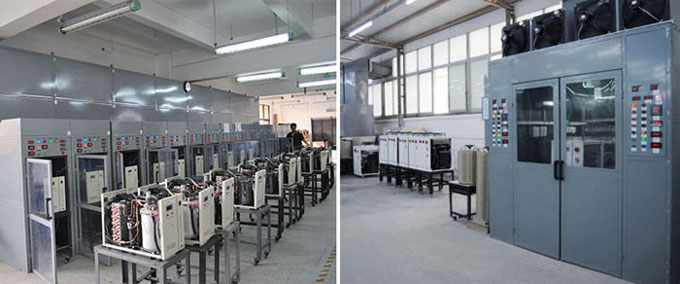

TEST SYSTEM

With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

WATER CHILLER TEST SYSTEM
