Portable Water Chiller CWUP-30 for Ultrafast Laser UV Laser ±0.1°C Precision Modbus 485 Communication

Our expertise in high precision cooling technology translates into air cooled industrial chiller CWUP-30. This laser machining cooling unit may be simple in design yet it delivers precise cooling featuring ±0.1°C stability with PID control technology and steady flow of chilled water for your ultrafast lasers and UV lasers. Designed with Modbus 485 function to provide effective communication between the chiller and laser system.

Completely self-contained, TEYU CWUP-30 laser water chiller combines a high-efficiency compressor and a durable fan-cooled condenser and is suitable for purified water, distilled water or deionised water. Designed with multiple built-in alarm functions and an intelligent digital temperature controller. Easy-fill port is mounted on top while 4 caster wheels are easy for mobility.

SEND INQUIRY NOW

Product Introduction

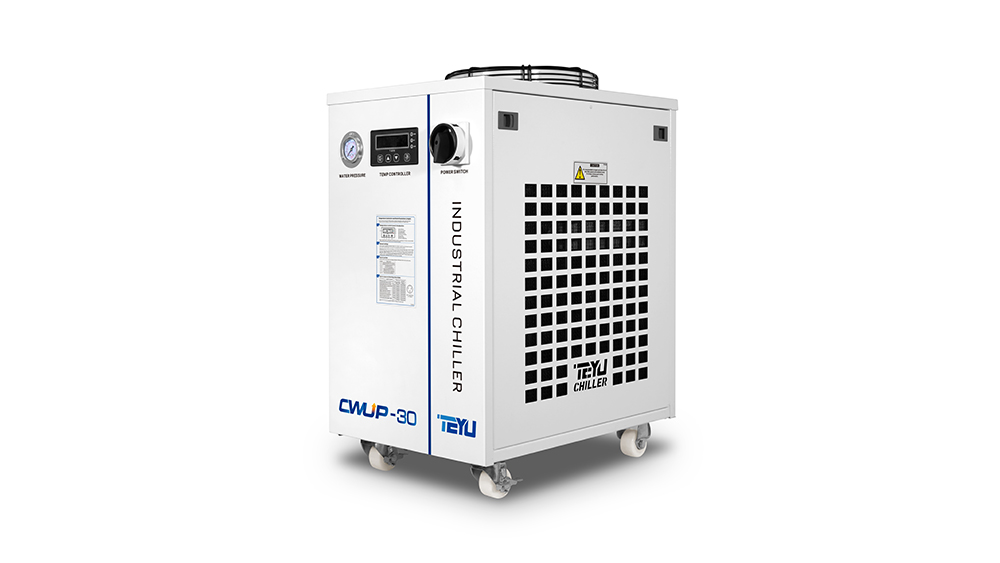

Portable Water Chiller CWUP-30 for Ultrafast Laser UV Laser ±0.1°C Precision Modbus-485

Model: CWUP-30

Machine Size: 59X38X74cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWUP-30ANTY	CWUP-30BNTY
Voltage	AC 1P 220-240V	AC 1P 220-240V
Frequency	50Hz	60Hz
Current	2.3~9A	2.1~8.9A
Max. power consumption	1.9kW	1.91kW
Compressor power	0.87kW	0.88kW
	1.17HP	1.18HP
Nominal cooling capacity	8188Btu/h
	2.4kW
	2063Kcal/h
Refrigerant	R-410a
Precision	±0.1℃
Reducer	Capillary
Pump power	0.37kW
Tank capacity	10L
Inlet and outlet	Rp1/2"
Max. pump pressure	2.7bar
Max. pump flow	75L/min
N.W.	52Kg	55Kg
G.W.	58Kg	61Kg
Dimension	59X38X74cm (L X W X H)
Package dimension	66X48X92cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

Intelligent functions

* Low tank water level detecting

* Low water flow rate detecting

* Over water temperature detecting

* Heating of the coolant water at low ambient temperature

Self-check display

* 12 types of alarm codes

Easy routine maintenance

* Toolless maintenance of dustproof filter screen

* Quick-replaceable optional water filter

Communication function

* Equipped with RS485 Modbus RTU protocol

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

Digital temperature controller

The T-801B temperature controller offers high precision temperature control of ±0.1°C.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Ultrafast UV Laser Chiller CWUP-30 Modbus RS485 communication

Modbus RS485 communication port

The RS485 communication port enables communication with the laser system.

Ventilation Distance

Ultrafast UV Laser Chiller CWUP-30 Ventilation Distance

Certificate

Product Working Principle

Ultrafast UV Laser Chiller CWUP-30 Product Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the industrial chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team ([email protected]) first.
