Precise Temperature Control for Laser Systems and Industrial Applications Since 2002
Language

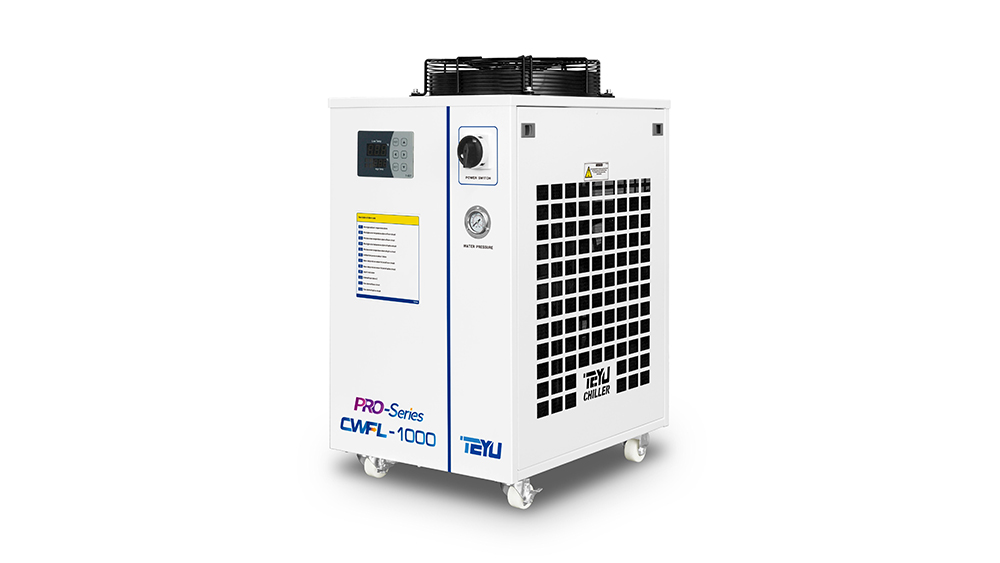

TEYU industrial processing water chiller CWFL-1000 is a high-efficiency dual circuit process water chiller ideally suited for cooling fiber laser engraving welding cutting machines up to 1KW. Each of the cooling circuits is independently controlled and has its own mission - one serves for cooling the fiber laser and the other serves for cooling the optics. That means you don’t need to buy two separate chillers.
Laser water chiller CWFL-1000 uses nothing but components that conform to CE, REACH and RoHS standards. Providing active cooling featuring ±0.5℃ stability, CWFL-1000 laser chiller can increase the lifetime and improve the performance of your fiber laser system. Built-in multiple alarm devices to further protect the chiller and laser equipment. Four caster wheels offer easy mobility and unmatched flexibility. Laser chiller CWFL-1000 is an excellent cooling unit for your 1000W laser engraver, cutter or welder.
Model: CWFL-1000
Machine Size: 70 X 47 X 89cm (LX W X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
| Model | CWFL-1000ANPTY | CWFL-1000BNPTY |
| Voltage | AC 1P 220-240V | AC 1P 220-2400V |
| Frequency | 50Hz | 60Hz |
| Current | 2.5~14.6A | 3.9~13A |
Max. power consumption | 2.56kW | 3.27kW |
Heater power | 550W+600W | 600W+600W |
| Precision | ±0.5℃ | |
| Reducer | Capillary | |
| Pump power | 0.37kW | 0.75kW |
| Tank capacity | 14L | |
| Inlet and outlet | Rp1/2"+Rp1/2" | |
Max. pump pressure | 3.6bar | 5.3bar |
| Rated flow | 2L/min + >12L/min | |
| N.W. | 63Kg | 66Kg |
| G.W. | 75Kg | 76Kg |
| Dimension | 70 X 47 X 89cm (LX W X H) | |
| Package dimension | 73 X 56 X 105cm (LX W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Dual cooling circuit
* Active cooling
* Temperature stability: ±0.5°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* User-friendly controller interface
* Integrated alarm functions
* Back mounted fill port and visual water level
* Optimized for high performance at low temperatures
* Ready for immediate use
Heater
Filter
US standard plug / EN standard plug
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

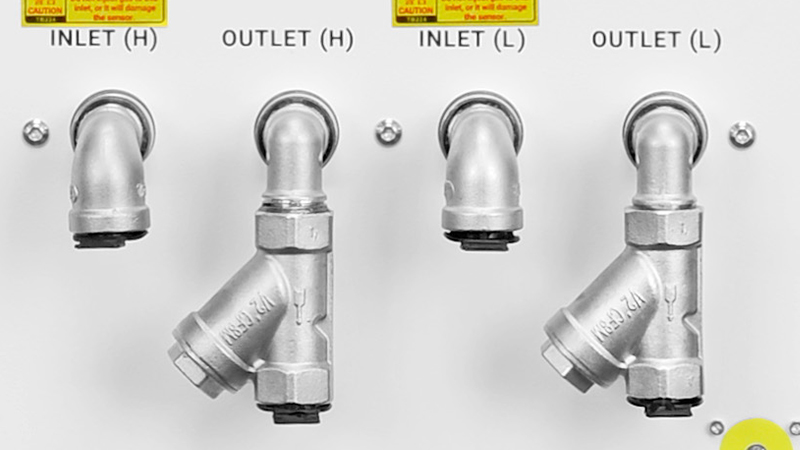

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
