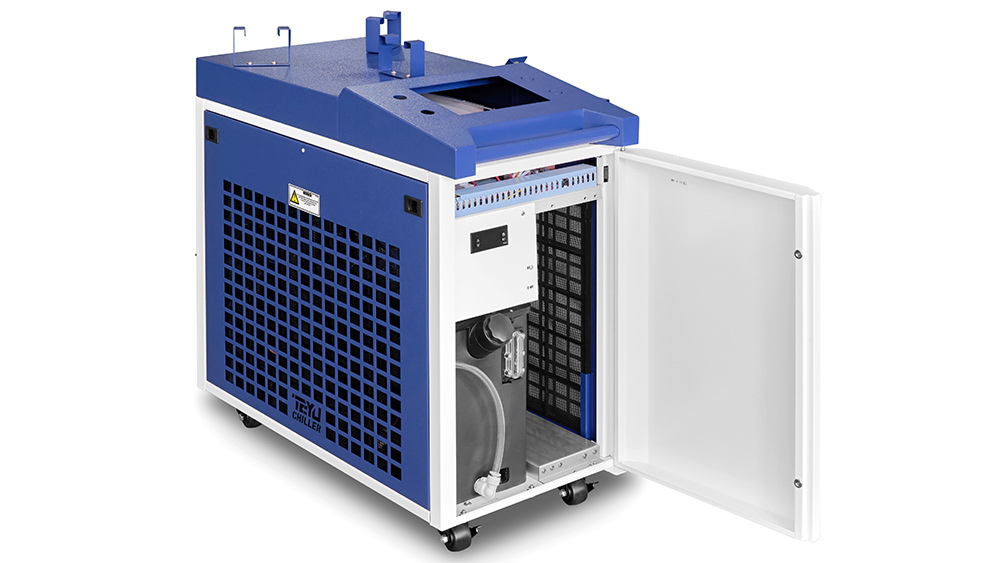

Industrial Chiller CWFL-1500ANW12 is specially designed by TEYU chiller manufacturer for 1500W handheld laser welding machine. It boasts dual cooling circuits that can simultaneously cool both the fiber laser and the optics/laser gun. With excellent workmanship, efficient cooling, easy installation and maintenance, industrial chiller CWFL-1500ANW12 is an ideal cooling device for your handheld laser welding machine. It's also suitable to cool the handheld fiber laser cleaners/cutters/engravers.
Industrial chiller CWFL-1500ANW12 is user-friendly in that users no longer need to design a rack to fit in the laser and the rack water chiller. With a built-in TEYU industrial chiller, after installing the user's handheld laser welder on the top or right side, it constitutes a portable and mobile handheld laser welder. Laser gun holder & cable holder make it easy to place the laser gun and cables, saving space, and can easily be carried to the processing site in various application scenarios.
Model: CWFL-1500ANW12
Machine Size: 88 X 40 X 76cm(LxWxH)
Warranty: 2 years
Standard: CE, REACH and RoHS
| Model | CWFL-1500ANW12TY | CWFL-1500BNW12TY |
| Voltage | AC 1P 220-240V | |
| Frequency | 50Hz | 60Hz |
| Current | 1.2~10.8A | 1.2~9.9A |
Max. power consumption | 2.33kW | 2.73kW |
Compressor power | 1.28kW | 1.17kW |
| 1.72HP | 1.56HP | |
| Refrigerant | R-410a | |
| Precision | ±1℃ | |
| Reducer | Capillary | |
| Tank capacity | 10L | |
| Inlet and outlet | Φ6+12 Fast connector | |
| Pump power | 0.26kW | |
Max. pump pressure | 3bar | |
Rated flow | 1L/min+＞15L/min | |
| N.W. | 49Kg | 54Kg |
| G.W. | 63Kg | 67Kg |
| Dimension | 88 X 40 X 76cm(LxWxH) | |
| Package dimension | 95 X 48 X 95cm(LxWxH) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* All-in-one design
* Lightweight
* Movable
* Space-saving
* Easy to carry
* User-friendly
* Applicable to various application scenarios
(Note: fiber laser is not included in the package)
Heater
US standard plug / EN standard plug
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

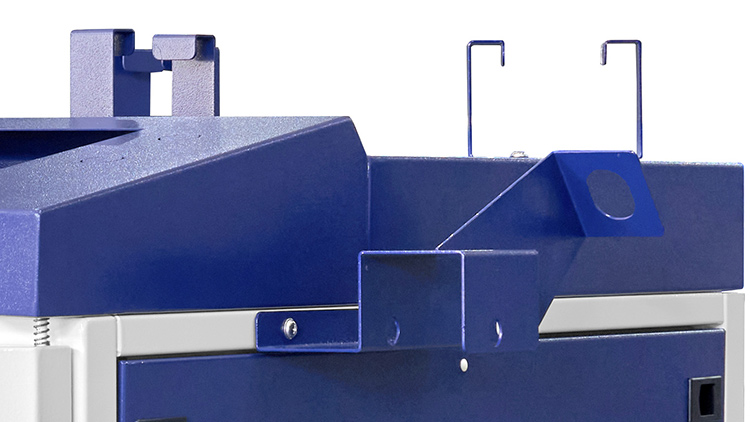

Laser Gun Holder & Cable Holder
Easy to place the laser gun and cables, saving space, easy and portable, and can easily carry to the processing site in various application scenarios.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
